Description

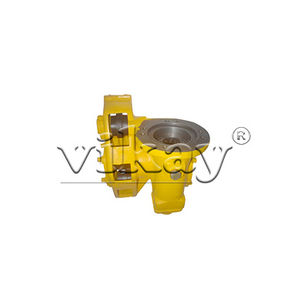

3162166380 Worm Gear Housing Complete - Five Start
miningequipmentparts.com offers a comprehensive selection of high-quality replacement parts / equipment 3162166380 Worm Gear Housing Complete - Five Start - 3162 1663 80 suitable for Atlas Copco Wagon Drill Parts from India.
Worm Gear Box Complete - Five Start 3162166380
No. | Description | Ref. Part No. |
– | Worm Gear Housing Complete - Five Start (1-27) | |
1a & 2a | – Shaft Complete with Worm Gear - Five Start | |
1a | – Shaft only for Five start | |
2a | – Worm Gear, Five Start (Bronze Repear 2a) | 3162166700 * |
3 | – Bolt | |
4 | – Spring Washer | |
5 | – Nut (Modified) | |
7 | – Seal Ring | |
8 | – Sprocket | |
10 | – Cover | |
12 | – Screw | |
13 | – Shaft | |
14 | – Washer | |
15 | – Ball Bearing | |
16 | – Pulley Wheel | |
17 | – Spring Washer | |
18 | – Stop Screw | |
19A | – Worm Shaft, Five Start | |
20 | – Ball Bearing | |
21 | – Seal Ring | |
23 | – Gear Housing | 3162166300 |
24 | – Gasket | |
25 | – Plug | |
26 | – Ball Bearing | |
27 | – Cover | |
29 | – Screw | |
30 | – Ball Bearing | |
32 | ||
33 | – Ball Bearing | |
34 | – Washer | |
35 | – Split Pin | |
36 | – Nut | |
37 | – Cover | |
39 | – Screw | |
40 | – Bolt | |
41 | – Clamp | |
42 | – Circlip Int. |
